ECHONAUTICS
Traditional CW Dual-Frequency Transducer
CB101D600CW
RECREATIONAL BOATSFISHING VESSELS
Frequency
CW 50/200 kHz
Housing Type
Bronze
Install Type
Thru-Hull

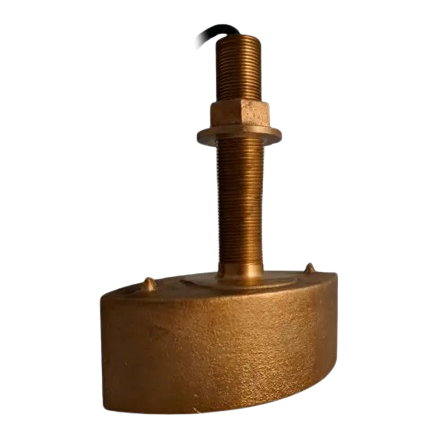

The CB101D600CW is a 600 W, bronze housing traditional CW dual-frequency (low frequency 50 kHz and high frequency 200 kHz) thru-hull transducer. It provides depth and temperature.
Specifications
| Frequency | CW 50/200 kHz |
| Housing Type | Bronze |
| Install Type | Thru-Hull |
| Power Rating | 600 W |
Features & Functions
- CW
- 600 W
- Low frequency 50 kHz
- 42° beamwidth
- Maximum depth 353 m
- High frequency 200 kHz
- 11° beamwidth
- Maximum depth 206 m
- Depth and fast-response water-temperature sensor
